Oceanography Unit

Last edited - June 20, 2026

Activities, lesson plans, & lab notes

Questioning is the foundation of all learning.
The first step in rejecting not knowing is to ask, why?
Sweetland

Introduction

Contents Overview

A sequence of plans to facilitate a review and develop a deeper understanding of the Earth's oceans, their properties, what's in them, under them and their importance for life on Earth.

Related resources:

Related study topics:

Planning information

Learner background information

A plan designed for learners who have prior knowledge in cause and effect, use of observations to make inferences, models as explanations for observable and non observable events, and working in groups.

Intended learnings & learners thinkings

See for more information on what to include in general planning

Content concepts or outcomes
(Source concepts & misconceptions)

Big idea

The ocean is essential for human survival. To protect our species we need to be Ocean Literate.

Concepts and facts

The Essential Principles for Ocean Literacy Source

  1. Earth has one big ocean with many features.
  2. The ocean and life in the ocean shape the features of Earth.
  3. The ocean is a major influence on weather and climate.
  4. The ocean makes Earth habitable.
  5. The ocean supports a great diversity of life and ecosystems.
  6. The ocean and humans are inextricably interconnected.
  7. The ocean is largely unexplored.

Outcome

Explain the features of the Earth's oceans and explain how humans rely on it for their survival.

Science concepts: physical, earth, life

Earth's Systems (ESS2)

  • Water Cycle: The distribution of water on Earth (mostly in oceans) and how it cycles through the atmosphere, land, and ocean.
  • Plate Tectonics: Ocean floor mapping, trenches, and mid-ocean ridges serve as core evidence for tectonic plate movement and seafloor spreading.
  • Weather and Climate: The ocean absorbs and stores massive amounts of solar energy, acting as the primary driver for global weather patterns, ocean currents (like the Gulf Stream), and climate regulation.
  • Earth's Features: Waves, tides, and coastal currents constantly shape and reshape coastlines and landforms over millions of years.

Life Science (LS2 & LS4)

  • Marine Ecosystems: Energy flows through ocean food webs, beginning with microscopic phytoplankton up to apex predators like sharks and marine mammals.
  • Biodiversity and Adaptations: The ocean contains vast, unexplored biodiversity. Marine organisms possess unique anatomical and physiological adaptations to survive in harsh aquatic environments (e.g., pressure, salinity, and temperature).

Earth and Human Activity (ESS3)

  • Human Impacts: Humans rely on the ocean for resources (food, energy, transportation) and human activities can negatively affect marine environments (e.g., ocean acidification, overfishing, and plastic pollution).
  • Natural Hazards: Tsunamis, coastal flooding, and shoreline erosion can be reduced with well designed engineering solutions to protect coastal communities.

Specific concents and facts

  • Earth has five oceans. Indian, Pacific, Arctic, Southern, & Atlantic.
  • Differences in temperature create currents.
  • Oceanographers map ocean surface temperatures using isotherms. - Isotherms are lines created by connecting places with equal temperatures.
    • Water Temperature and Current Direction (in the Northern Hemisphere). If you float on an ocean isotherm with cold water to your left and warm water to your right, the current will push you from back to front.
    • Isotherm Spacing and Current Speed. Closely spaced isotherms mean the ocean temperature changes drastically over a very short distance.This sharp temperature contrast creates a steep density slope. The steeper the slope, the higher the pressure difference, and the faster the ocean current flows.
  • Warm water is less dense and moves to the sea surface slightly increasing its height (sloping upward).
  • Cold water is denser and sits lower.
  • Water naturally wants to flow down from warm to cold. However, the earth's rotation generates the Coriolis effect, which deflects the moving water to the right in the Northern Hemisphere. This creates a balanced, stable current that flows parallel to the isotherms, keeping the cold water on its left.

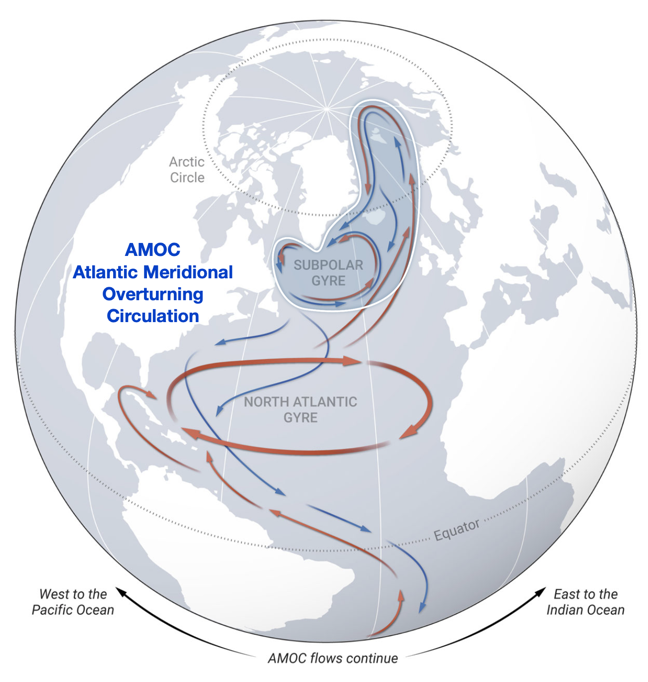

  • Major global currents like the Gulf Stream are driven by these intense temperature differences and feature very tightly packed isotherms.

Outcome

  1. Locate the Oceans on Earth.
  2. Locate and describe the major ocean currents.
  3. Describe the Earth's ocean's geography.

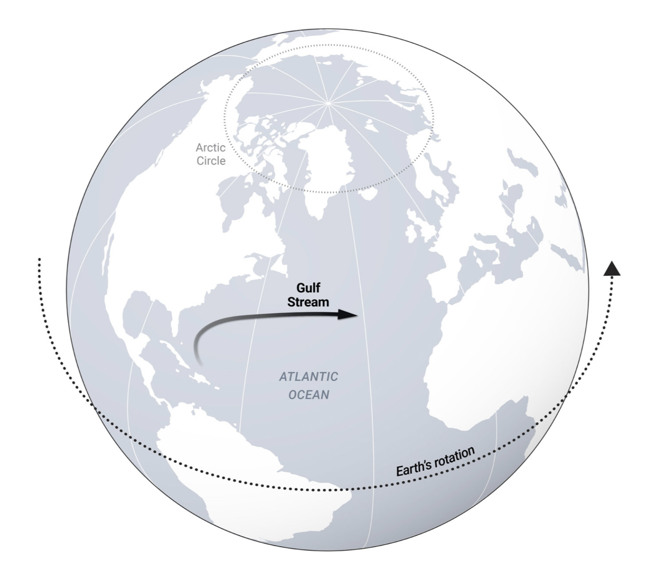

  4. Explain how currents move with interactions by the Earth's rotation, the Moon's gravity, and different temperatures.
  5. Identify and describe several animals and plants that live in the ocean. Their key properties, how they get their energy (food web or light), the ecosystems in which they live, and their benefits.

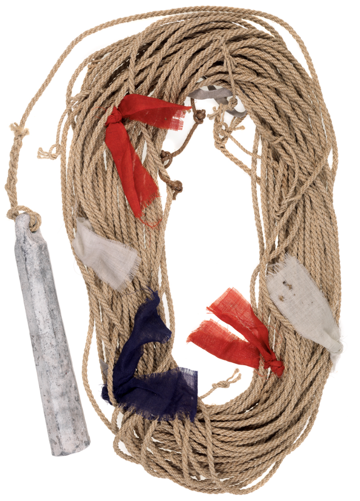

  6. Describe how the ancients measured the depth of the oceans and seas.

Anticipated learner thinkings & misconceptions

Density is a concept that younger learners will operationalize as heavy (mass). They will not understand that it is a relationship between volume and mass till later. Therefore, when talking about ocean water as more or less dense do to amounts of salt and temperature differences it may be helpful to include activities or demonstrations for density. Like mixing colored water activities 7 & 8.

  • Oceans are just water.
  • Plants and animals live in all parts of the ocean.
  • Dinosaurs made holes for oceans.
  • Paul Bunyan made rivers, some supernatural beings made oceans.
  • Oceans and floods made mountains.

Inquiry, process, & cross cutting concepts & skills

Inquiry

  • When I experiment I collect observations that describe how different properties change (become variables) when objects and systems interact. This helps me make claims, explain what is happening, and to predict what might happen in the future.
  • Inquiry concepts
  • Process concepts
  • Perspective concepts

cross cutting

Big ideas: See also Concepts & misconceptions

Related concepts and facts

  • Observational data and reasoning is used to explain interactions. Evidence is something that is observed and can be used to understand what is happening and make predictions about future changes.
  • Models are structures that correspond to real objects, events, or classes of events.
  • Explanations are based on observation derived from experience or experimentation and are understandable.
  • Pictures or symbols represent objects.

Outcomes

  • Use explanations based on observations derived from experience, experimentation, and research to prepare and present understandable information about the properties of the oceans and the objects in and under them.

Other possible concepts

History of science and development of technology - perspective of science

See also Concepts & misconceptions also science, math, technology timeline

  • People have practiced science and technology for a long time.
  • Science develops over time.
  • Science investigators such as

Scoring guides suggestions (rubric)

(scoring guide)

Top level

  • A

Lower level

Oceanography review

Strategies to achieve educational learnings

Based on learning cycle theory & method

Instructional Procedure

Pedagogical Overview

Activities Sequence to provide sufficient opportunities for students to achieve the targeted outcomes.

Make sure learners have the prior knowledge identified in the background information.

  1. Activity 1 - Water on Earth model
  2. Activity 2 - Mapping the oceans and their currents
  3. Activity 3 - Exploring What's in the oceans
  4. Activity 4 - Floating and Sinking Potatoes in Water
  5. Activity 5 - Ocean motion - Ocean current model with ice, warm water, & pepper
  6. Activity 6 - Ocean Motion & Earth motion
  7. Activity 7 - Class ocean mural
  8. Activity 8 - Measuring ocean depth
  9. Activity 9 - Human Impact on the Oceans & Conservation of Oceans
  10. Oceanography review

Focus question

Unit focus question:

What are the properties of the ocean?

Sub focus questions:

  1. What can humans do to sustain the oceans for the survival of life on Earth?

Materials

Lab notes

Resources

Lesson Plans

Activity 1 - Water on Earth model

This activity is Activity 8 in the Pollution Unit and has more related to water and pollution in the unit.

Materials

Focus questions:

  1. How is water on Earth distributed?
  2. How much water on Earth is drinkable?

Challenge

Make a model that shows the distribution of water on Earth.

Learning outcomes:

  1. Make and describe a model that shows the percentage of water on earth that is fresh.

Suggested procedures overview:

  1. Put learners in groups, focus their attention, and assess their initial understanding of the focus questions.
  2. Activity - Make and describe a model that show the percentage of water on Earth that is fresh and where it is located. Fresh water in glaciers, groundwater, and surface water. Salt water in the oceans.

Exploration

  1. Organize learners into groups and pairs.
  2. Have each learner decide which finger they want to use as the landing indicator.
Finger labels
  1. Tell the learners you will gently toss it them and they will tell if their selected finger is in water or on land. Toos them the globe and they will say (right or left) hand and (thumb, index finger, middle finger, ring finger, or pinky) Repeat tossing the globe, and have another learner record if the position of their choice is on water or land.
  2. Repeat the toss to all students in the class. If there is less than 25 students, then have some repeat a catch till you get to 25. Or if there is more than 25, you might want to continue to 50. As a mater of fact you may want to do 50 tosses no matter what, so you can just double the amount of selected fingers on the ocean to get a percentage.
  3. Tell. How can we use the results to determine how much of the Earth is covered with water? Make a fraction. 71/100 or  71%
  4. Use 1,000 ml of water as the total amount of water on the Earth. Make a model to show how much would be drinkable or fresh water (fresh water can be defined as water that has less than 1,000 milligrams per liter of dissolved solids (salts)). There are three main sorces of freshwater; glaciers, groundwater, and surface water.

According to data from the USGS and NOAA, the vast majority of Earth's water is salt water, with freshwater making up only about 2.5% to 3% of the total.

Here is the breakdown of the distribution of Earth's total water supply:

  • Ocean Water (and Inland Seas): ~96.5% – 97.5%
  • Glaciers and Permanent Snow: ~1.74% – 2.15% (mostly in Antarctica and Greenland)
  • Groundwater: ~0.61% – 1.69% (including soil moisture)
  • Surface Water (Lakes, Rivers, Swamps): ~0.009% – 0.022% (freshwater lakes, rivers, etc.)
  • Atmosphere: ~0.001% (as water vapor)
  1. Use the containers to show were the water is located. Fresh water in glaciers, groundwater, and surface water. Salt water in the oceans.
  2. Ocean is about 970mL and 30 ml fresh (3%).
  3. Of the 30 ml or 3% being located with 70% is in glaciers, 29% in groundwater, and 1% surface water.
  4. Use this information to redistribute the 30 mL of water. 21 mL glaciers, 8.5 mL represents ground water, & .5 mL represents surface water. in containers and label them.
  5. Discuss.
  6. Most learners are truly shocked when they learn about this. Provide time to process.
    • How truly limited drinkable water is.
    • The consequences of glacier melt.
    • How important groundwater is.
    • How limiting surface water is.
    • H0w pollution is more consequential when the source of fresh water is so limited.
  7. How would these be represeented on a sheet of graph paper to show ... 3% of Earth's water is fresh, 97% is ocean or salt water. with the 3% showing that 70% of it is in glaciers, 29% in groundwater, and 1% surface water?

Invention

  1. Regroup as a class and groups demonstrate their models with water. and graphing.
  2. Share their graph paper representations.

Activity 2 - Mapping the oceans and their currents

Materials

Focus questions:

  1. What do you know about the location of Oceans on Earth?
  2. What do you know about how their water's flow?

Learning outcomes:

  1. Label a map with the position of the Oceans.
  2. Draw and label the major currents in the Oceans.

Suggested procedures overview:

  1. Put learners in groups, focus their attention, and assess their initial understanding of the focus questions.
  2. Activity - Review maps and label a map with the position of the Oceans and the major currents in thems.

Exploration - .

  1. Put learners in pairs.
  2. Ask. What do you know about the Ocean?
  3. Record for all to view. Might want to group their ideas by the Ocean properties below.
  4. Tell them. You can use this property list to add to it as we learn about the properties of the Ocean.

Properties of Ocean Water

Physical properties related to ocean water

  • Salinity: Total dissolved solids (salts), and how evaporation and freshwater input affect it.
  • Temperature and Density: The relationship between temperature, salinity, and water density (e.g., how cold water sinks).
  • Pressure: The concept of increasing water pressure as depth increases.

Ocean Zones

  • Light Levels: Photic (sunlit) vs. aphotic (dark) zones and their effect on photosynthesis.
  • Depth Zones - Surface zone (mixed), transition zone, and deep zone.

Ocean Motions

  • Surface Currents: Driven by global winds and the Coriolis effect, often moving in large loops called gyres.
  • Deep Ocean Circulation: Thermohaline circulation driven by differences in density created by temperature differences.

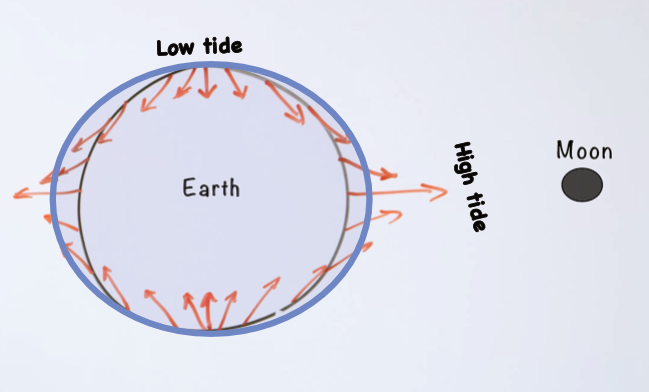

  • Waves and Tides: The formation of waves (energy transfer) and tides driven by gravitational pull.

Ocean Floor Features

  • Continental shelf, slope, and rise.
  • Deep Ocean Basins: Abyssal plains, trenches, mid-ocean ridges, and hydrothermal vents.

Ocean and Earth Systems

Climate and Weather

  • The ocean stores and transfers heat, impacting global weather patterns.
  • The Water Cycle - the ocean is the primary driver of evaporation and precipitation.

Organisms in the ocean

  • Animals
  • Plants
  • Other

Human Impacts

  • Ocean acidification,
  • Pollution marine debris,
  • Ocean resource management
  1. Tell the learners. We are going to explore these properties after we locate the Oceans and their currents on a world map.
  2. Map the location of the Oceans on the World Map World map with oceans

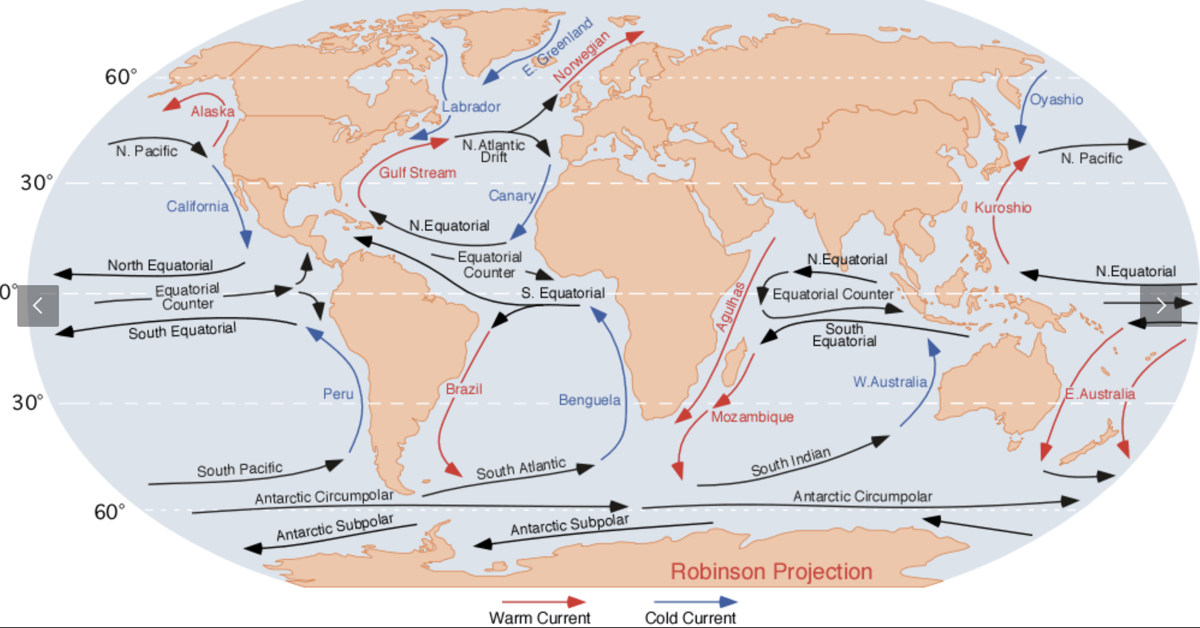

  3. Use the Ocean currents map and add the currents to your map.
    4. Ocaean currents

Invention -

  1. Review the locations of the Oceans and currents.
  2. Explain that you will be doing some explorations to understand more about the Ocean currents in the coming activities, but they are going to watch some videos about what is in the oceans so they can learn about those properties and also to think about what organisms they might pick to do a deep dive aboiut them and present what they find to the class. (PUN intended)

Discover

Review properties of oceans and current in coming activities.

Activity 3 - Exploring What's in the oceans

Materials

Focus questions:

  1. What do you know about what is in and under the Ocean?

Learning outcomes:

  1. Watch videos, identify some basic ocean zones, the geography of the Earth's Oceans, their floors, and map and diagram their characteristics in their lab notes and add to class properties list.

Suggested procedures overview:

  1. Put learners in groups, focus their attention, and assess their initial understanding of the focus questions.
  2. Activity - Watch videos, identify some basic ocean zones, the geography of the Earth's Oceans, their floors, and map and diagram their characteristics in their lab notes.

Exploration - .

  1. Put learners in pairs.
  2. Review the class list of what they know about the Ocean and say we are going to be adding to our list and their lab notes.
  3. Ask. What do you know about what is in and under the Ocean?
  4. Add to what has been recorded and reorganize as desired.
  5. Tell. You are going to watch some videos about what is in the oceans so they can pick some organisms to do a deep dive into and present what they find to the class. (PUN intended).
  6. Watch the Video on PBS - Oceans: What's under the surface (7:04)
  7. Review and note ... the following information under the appropriate categoreis in the class tree or map.

Ocean properties

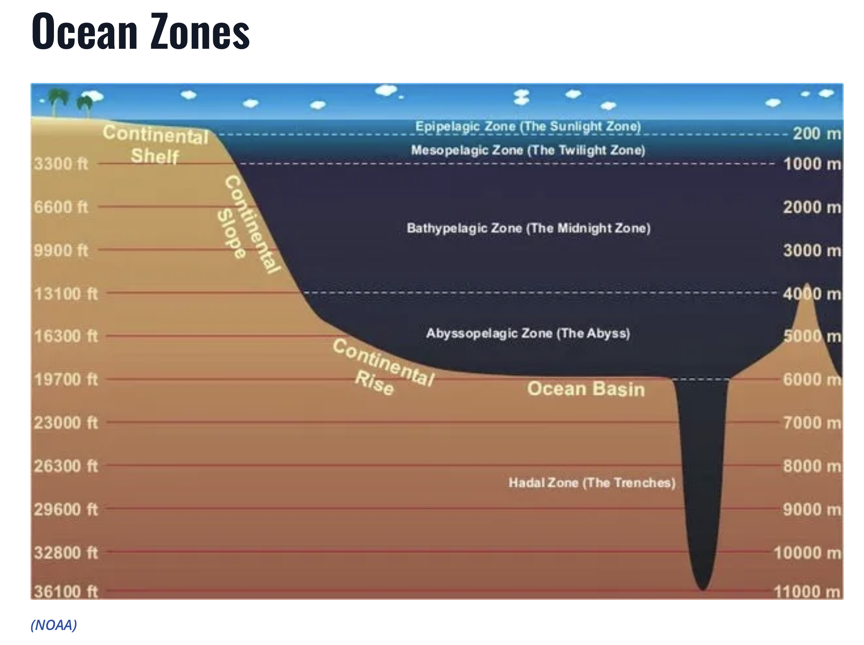

Light in ocean zones (sunlight, twilight, midnight).

Temperatures: Mixed layer, (55degree F,) 0 - 200 meters, Thermocline 200 - 1,000 meters, Deep water (39 degrees F)



Geography: Continental shelf, continental slope, abyssal plain, oceanic trench,
Mariana Trench
Ocean Ranges
Bay of Dundee

Map and video shows the oceans and drains them to show the ocean floors

Draining the Oceans (.34)

Ocean movements - currents

Variables that affect ocean currents: turning of the Earth, Tides, Temperature differences
Motion of waves, up and down till reach shore.

Invention -

Discover



Activity 4 - Floating and Sinking Potatoes in Water

Materials:

  • Potatoes, knife,
    • container A with one liter fresh water
    • container B with one liter of salt water. Salty enough to float potato pieces or whole potato,
    • container C to create a mixture of ¼ liter of salt water and ¼ liter of fresh water.
  • Egg float challenge in density unit - activity 8

Focus questions:

  1. How does salt affect how you float?
  2. What causes objects to sink and float?
  3. Will objects sink and float in different liquids?
  4. How do we explain the results?

Learning outcomes:

  1. Identify mass and volume as properties of matter.
  2. Identify mass and volume related to density.
  3. Use observations to predict the relative density of solids and liquids.
  4. Identify properties that effect change as variables.
  5. Identify properties that can be used as variables to operationalize how the observations occur.
  6. Suggest explanations for cause and effect of variables and how they could cause the difference.
  7. Use properties as variables to explain observations.
  8. Use reasoning and explanations for cause and effect by discussing variables and how they could cause differences.

Scoring guide

Top level

  • Identify variables (mass of the water solution and mass of the potato) that affects sinking and floating potatoes (operational definition) - Salt is more dense than water, therefore, salt (molecules) holds objects up better than water (molecules) so themore salt in the solution, the better objects will float.
    Apply the idea or model of solutions (a mixture where a substance (solute) is uniformly distributed within another substance (solvent) to an explanation as to why the potato floats or doesn’t float in fresh and salt water.
  • Accept anything that identifies a variable related to density and a logical explanation.
  • Focuses on weight as variable that affects if the potato floats or sinks.

Lower level

Suggested procedures overview:

  1. Put learners in groups, focus their attention, and assess their initial understanding of the focus questions.
  2. Activity - Explore potatoes in water with different amounts of salt and explain how the salt effects how it floats.
  3. Describe salt as a variable and how it changes to affect the outcome. The amount of salt in the solution will affect how objects will float in them. More salt better float.
  4. Describe an operational definition as explaning the relationship between a changing variable and an outcome. The amount of salt in the solution will affect how objects will float in them. More salt better float

Exploration

  1. Put learners in groups.
  2. Don’t tell the learners what is in either container.
  3. Ask. What will happen when potato pieces are put into container A and B?
  4. Have them write their prediction of what is going to happen and their explanation of what variables they think will determine or cause it. (Potato and solution volume, mass, density).
  5. Insert different sizes of potato pieces in each container.

Invention

  1. Collect data, Record data, Share data.
  2. If they haven't suggested the liquid in each container is different, then suggest it as a possibility.
  3. Have the learners write one or more sentences describing what they think is happening differently according to different variablesd. (size of potato, purity of the water, …)
  4. Again, if they use the word “Density” ask them to define it operationally (explain what variables are affecting it and how are they doing it. How does the purity of the water, water, the mixed water, and the salty water operate on the potato? The salt is lifting it and the more salt the greater the lift (buoyancy).

Discovery

  1. Pour 250 ml of salt water into the third container (C), slowly pour 250 ml of fresh water on top as if it would float on top of the salty water, and label it C
  2. Ask.Predict what will happen when potato pieces are inserted.
  3. Insert potatoes.
  4. Collect data, Record data, Share data
  5. Discuss

Additional discovery see can you make an egg float?

Activity 5 - Ocean Motion

Materials:

  • Clear container (about 5 liters), semi-hot water, cold water or ice, pepper, plastic bag.
  • Lab note

Focus questions:

  1. What causes the ocean motion?
  2. How can we model the flow of currents in the ocean caused by different temperatures?
  3. How does water flow?
  4. How is the experiment relate to the Ocean's currents?

Learning outcomes:

  1. Differences in temperature create currents.
  2. Oceanographers map ocean surface temperatures using isotherms. - Isotherms are lines created by connecting places with equal temperatures.
    • Water Temperature and Current Direction (in the Northern Hemisphere). If you float on an ocean isotherm with cold water to your left and warm water to your right, the current will push you from back to front.
    • Isotherm Spacing and Current Speed. Closely spaced isotherms mean the ocean temperature changes drastically over a very short distance.This sharp temperature contrast creates a steep density slope. The steeper the slope, the higher the pressure difference, and the faster the ocean current flows.
  3. Warm water is less dense and moves to the sea surface slightly increasing its height (sloping upward).
  4. Cold water is denser and sits lower.
  5. Water naturally wants to flow down from warm to cold. However, the earth's rotation generates the Coriolis effect, which deflects the moving water to the right in the Northern Hemisphere. This creates a balanced, stable current that flows parallel to the isotherms, keeping the cold water on its left.
  6. Major global currents like the Gulf Stream are driven by these intense temperature differences and feature very tightly packed isotherms.

Suggested procedures overview:

  1. Put students in groups, focus their attention, and assess their initial understanding of the focus questions.
  2. Activity - Explore temperature change model and explain: What causes the ocean motion? How can we model the flow of currents in the ocean caused by different temperatures? How does this affect the water flow? How is the experiment relate to the Ocean's currents?

Exploration

  1. Put learners in pairs.
  2. Put the ice or cold water into the plastic bag and seal it.
  3. Fill the large clear container with semi- hot water.
  4. Stir in some pepper until you have a fair distribution of pepper.
  5. Let the water motion settle down.
  6. Slowly lower the ice bag into one end of the container.
  7. Observe the current.

Invention

  1. Recall and review .
  2. What directions does the pepper go relative to the ice?
  3. What about relatve to the warmer water in the other end of the container?



Activity 6- Ocean Motion, Gravity, & Earth motion

Materials:

Focus questions:

  1. How does gravity cause Earth motion?
  2. How does the Earth's motion cause the ocean motion?
  3. How can we model the the relationship of the Earth's motion to the motion of the Ocean?

Learning outcomes:

  1. Explain how temperature differences, the Ocean tides caused by the gravitational pull of the Moon and Sun (which pull the oceans into two alternating bulges), combine with Earth's inertia and rotation, cause the motions of the ocean's waters.
  2. Explain how the models and demonstrations demonstrate how these forces shape our oceans.

Suggested procedures overview:

  1. Put students in groups, focus their attention, and assess their initial understanding of the focus questions.
  2. Activity - Explore and explain the affects of gravity, temperature differences, and the Earth's motion on the motion of the ocean's waters.

Exploration - gravity and tides

  1. Put learners in pairs.
  2. Watch and discuss the NASA animatition of tides - models gravity interactions, high & low tides, solar and moon tides combined, spring and neap tides.

Invention

  1. Recall and review.
  2. Draw models to show the moon's force related to tides. How the gravity causes bulges that are inline with the position of the Earth, Moon, and Sun. Hold off on motion till after the turntable experiment.

Exploration - Earth's rotation.

Focus question - How does the Earth's rotation affect the motion of the Earth?

Two quick demonstrations

  1. Spinning Turntable (or Lazy Susan) Experiment to Demonstrate how a straight line curves on a rotating planet.
  2. The Swirling Water Tub Experiment to show how the water moves with the container, but a little behind it.



1. Spinning Turntable (or Lazy Susan) Experiment to Demonstrate how a straight line curves on a rotating planet.

Materials

A lazy Susan (or rotating tray), a circular piece of paper, a ruler, and a marker.

  • Tape the paper to the tray.
  • Spin the tray counter-clockwise (representing Earth's rotation).
  • While it spins, try to draw a straight line from the center to the outer edge using the ruler. - Hold the ruler above the paper and move the pencil in a straight line along it from the center to the edge of the table it is sitting on as the paper spins.
  • The line will curve beautifully on the paper, showing how straight-moving currents are deflected by rotation.



2. The Swirling Water Tub Experiment - to model the Coriolis effect combinds with land boundaries to create amphidromic points (the hubs of swirling tides).

Materials

A circular plastic tub, water, a drop of food coloring, and a lazy Susan

  • Fill the tub with water and place it on the lazy Susan.
  • Spin the tray steadily counter-clockwise.
  • When the water is moving, gently squeeze one drop of food coloring into the outer edge of the water. The dye will swirl into a circular pattern around a calm center point, perfectly mirroring how actual ocean tides rotate around the glob.

Invention

Bring the learners together and use the information to summarize and invent the concepts for ocean motion.

  1. Tell. Younger people think all the ocean's motions are caused by wind.
  2. We are going to identify and describe the different motions or currents in the ocean.
  3. Okay. When we use the term current in association with water, it describes the motion of the water.
  4. Let's think about this.
  5. Are there currents underwater? yes
  6. Do rivers and streams have currents? yes
  7. When you watched the motion of rainwater as it flows down the street, or the motion of the water in a creek, stream, or river flowing.
  8. What causes the motion? Yes. Gravity as it flows from a higher elevation to lower elevation. This motion is caused by gravity. And this speed and direction (velocity) of currents can be measured and recorded.
  9. So what do we know about what causes Oceanic currents?
  10. Yes. They are driven by several factors. Let's review them:

1. One is the rise and fall of the tides, which is driven by the gravitational attraction of the sun and moon on Earth's oceans. Tides create a current in the oceans, near the shore, and in bays and estuaries along the coast. These are called "tidal currents." Tidal currents are the only type of currents that change in a very regular pattern and can be predicted for future dates.

2. A second factor that drives ocean currents is wind. Winds drive currents that are at or near the ocean's surface. These currents are generally measured in meters per second or in knots (1 knot = 1.15 miles per hour or 1.85 kilometers per hour). Winds drive currents near coastal areas on a localized scale, and in the open ocean on a global scale.

3. A third factor that drives currents is thermohaline circulation - a process driven by density differences in water due to temperature (thermo) and salinity (haline) in different parts of the ocean. Currents driven by thermohaline circulation occur at both deep and shallow ocean levels and move much slower than tidal or surface currents.
At the beginning of the unit we mapped the ocean currents.

4. A fourth factor we saw with the lazy susan or turn table or when you rotate a cup slowly and the friction of the cup's surface inside will push the water in the direction of the rotation.

Let's explore the tides and the Earth's rotation together as it is this combination of bulge and rotation that makes our tides.

From bulge to low is about 6 hours or 24 hours if we add them up ...

high to low (6) to high again (6) to low again (6) back to high again (6) = 24

Review with Videos - NASA animatition of tides

The diagram below combines the bulge (blue oval) with the motion (orange force lines) to show tidal movement.

Tides and gravity forces

To consider why the bulge is so different we need to explore the force of gravity.

Let's look at the

Law of universal attraction between objects.

  • f= force of gravitational attraction,
  • G is the gravitational constant,
  • m1 is the mass of one object,
  • m2 is the mass of a second object, and
  • r is the distance between the center of the two masses.

The Equation is

Gravitational force equation

Since the distance is squared it changes considerably over distance as represented by the LENGTH of the orange force vectors. This difference is one force that affects the motion of water currents. The other is Earth's rotation.

This is fairly complex so in your groups, write what you understand for each of the four and when you are done, we can share and see what we have learned.

Complete lab sheet.

Share and modify as desired.

Discover

  • How do ocean currents affect weather and marine life.





Activity 7 - Class ocean mural

Materials:

Focus questions:

  1. What are the organisms in the ocean?

Learning outcomes:

  1. Research, display, and report on one organism that is a producer and one that is a consumer interesting information about them including how they adapt to the ocean zones they inhabit.

Suggested procedures overview:

  1. Put students in groups, focus their attention, and assess their initial understanding of the focus questions.
  2. Activity - Research, display, and report on one organism that is a producer and one that is a consumer interesting information about them including how they adapt to the ocean zones they inhabit.

Exploration

  1. Put students in pairs.
  2. Ocean Life and Ecosystems Objective: https://ocean.si.edu/ecosystems/deep-sea/ocean-zones
  3. Introduce different types of ocean life: through classification
    • Marine mammals
    • Fish
    • Reptiles
    • Crustaceans
    • Mollusks
    • Cnidaria
    • Echinoderms
    • Plankton
    • Algae
    • Seagrass
  4. Write the different type where you can list examples and other notes.
  5. Ask. What organisms doyou know as examples of the different types? List the examples with the class.
  6. Watch the video: Learn 50 sea animals in English. (9:58)
    Maybe for younger audiences, but it does have clips of 50 actual animals. if you are asking your students to draw their selected animal, you could convince older learners that the initial pictures can illustrate how artist try to simplify them for younger children or how to make them more interesting, or to think about how they will illustrate their selection. Might discuss if this is good or not. What advantages or disadvantages there is to try to make animals look better?
  7. Activities: Sort photos of ocean creatures by zone, small-group research on one animal, share findings. Plan: 15 min intro, 25 min group activity, 10 min presentations.
  8. Have each learner select one consumer and one producer to research, illustrate, and report on.

Invention

  1. Recall and review list of ocean types.
  2. Each learner reports on their organism: Name, size, in what ocean zone it inhabits, illustration, other properties, how it gets its energy, life cycle, .
  3. Record notes about others organisms.

Discover


Activity 8 - Measuring ocean depth

Materials:

Prepare an ocean.

I got a very large paper towel box from my local grocer. Along with another box tout up and make the ocean floor in the bottom of the large paper towel box. Then I covered it with blue craft paper from a roll, left a very narrow opening lengthwise along the top to insert a fishing sinker weight tied to a piece of twine. Then I used meter stick to make a mark every 5 centimeters.

  • Cardboard box and extra boxes or pieces of cardboard, lead sinker, twine, meter stick, Graph Paper.
  • Lab notes

Focus questions:

  1. How is the depth of the ocean measured?

Learning outcomes:

  • Ancient mariners measured the depth of the ocean with lead and line.

Suggested procedures overview:

  1. Put students in groups, focus their attention, and assess their initial understanding of the focus questions.
  2. Activity - Measure the depth of the box and explain how it is a model to explain how ancient mariners measured depth and how it can be related to a model of a depth finder using sonar.

Exploration

  1. Ask. How do scientists measure the depth of the ocean? Ocean depth - Sonar, submersibles, ROV's.
  2. Introduce echolocation by bats, dolphins, and sonar.
  3. Compare sonar to bouncing a ball from a foot off the groud and six feet off the ground. The time it takes to go down and back can be measured and divided by two and the speed of sonar in water.
  4. Mention. Sounding, which ancient mariners did with lead and line. Tell them they are going to use lead and line to map the bottom of the ocean you made. Just like ancient mariners did.

Herodotus (-440 BCE): Recorded in his Histories (Book 2, 5), this description: "... approaching the Egyptian coast and using a sounding lead sailors brought up mud when the ship was still a day's sail from land.

Put learners in pairs. Explain they will take turns while working on their reports and drawings for the class mural.

Invention

  1. Share the maps that each pair constructed.
  2. What areas are similar and different?
  3. Where there locations that you took a mesurement or reading between the 5 cm?

Discovery

  1. Discuss how how sonar is similar and different to lead and line.
  2. Discuss how satelites are similar and different to lead and line.



Activity 9 - Ocean impacts on humans & Human impact on Oceans

Materials

Focus questions:

  1. How does the ocean impact humans and human impact oceans?

Learning outcomes:

  1. Learners will describe impacts human have on the oceans.

Suggested procedures overview:

  1. Put students in groups, focus their attention, and assess their initial understanding of the focus questions.
  2. Activity - Describe impacts human have on the oceans.

Exploration

  1. Explore topics for five minute pair reports.
  2. Effects on people -
  3. Humans effects on the oceans
    • Fishing
    • Pollution
    • Plastic - pledge to

Invention

  1. Ask. How

Discover

How can you continue to learn about the oceans?



Lab Notes for activities

Lab notes 1 -

Materials

  • Globe, different sized containers, liter, 500 ml, 100 ml, 10 ml
  • Lab notes

Focus questions:

  1. How is water on Earth distributed?
  2. How much water on Earth is drinkable?

Challenge

Make a model that shows the distribution of water on Earth

    Finger labels

Record the data from the Earth globe catch.







Use the data below to discuss how to make a model of water on Earth

According to data from the USGS and NOAA, the vast majority of Earth's water is salt water, with freshwater making up only about 2.5% to 3% of the total.

Here is the breakdown of the distribution of Earth's total water supply:

  • Ocean Water (and Inland Seas): ~96.5% – 97.5%
  • Glaciers and Permanent Snow: ~1.74% – 2.15% (mostly in Antarctica and Greenland)
  • Groundwater: ~0.61% – 1.69% (including soil moisture)
  • Surface Water (Lakes, Rivers, Swamps): ~0.009% – 0.022% (freshwater lakes, rivers, etc.)
  • Atmosphere: ~0.001% (as water vapor)

Use the containers to show were the water on Earth is located.















Discuss.

How does this information change the way you think about

The availability of drinkable water is.

The consequences of glacier melt.

How important groundwater is.

How limiting surface water is.

H0w consequential pollution .





How would you represeented this relationship on a sheet of graph paper?





Lab notes - Ocean properties

Write everything you know about the Oceans in ten minutes.















Lab notes 2 - Oceans and their currents

Materials

Focus questions:

  • Where are the Oceans of the world.

Challenge

List the Oceans of the Earth.

1.

2.

3.

4.

5.



Enter the locations of the Oceans on the map.

List the major currents in each?



Lab notes 3 - Properties of Oceans

Write ocean properties from class videos and discussion.

Physical properties related to ocean water (Salinity, temperature and density, pressure)









Ocean Zones (Light Levels - sunlit, dark zones and effect on photosynthesis)











Ocean Motions (Surface Currents, waves, winds, tides (gravity), the Coriolis effect & ocean circulation by density & temperature differences)









Ocean Floor Features (Continental shelf, slope, and rise, deep ocean basins: abyssal plains, trenches, mid-ocean ridges, and hydrothermal vents.










Lab notes 4 - Floating and Sinking Potatoes in Water

Materials

Potato, water, clear liter containers.

Focus questions:

  • How do potatoes float in different water solutions?

Write and draw what you saw for the potato in container A.







Write and draw what you saw for the the potato in container B.







Write and draw what you saw for the the potato in container C.







Analysis:
What variable do you think made a difference?



What causes you to believe that variable could cause a difference (size of potato, kind of liquid, ... )? How does the variable operate on the potato as it changes?







What do you believe a potato will do in these kinds of water:
Regular water




Semi salty




Mostly salty





Explanation or relationship?



Conclusions



Lab notes 5 - Ocean Motion

Materials

Clear gallon container, ground pepper, container or sandwich bag, ice, warm water,.

Focus questions:

  • How does temperature cause motion?



Challenge

  • Fill the clear container with warm water, stir ground pepper so it is as evenly distributed through out the container as possible, wait till the water is not in motion, put ice in the bag or container and float it in one end.
  • Observe what happens to the pepper and draw a picture using arrows to diagram the motion of the pepper.
  • Use your diagram and explain what causes the current in the container.
  • After you watch it for awhile, what happens to the current?













Lab notes 6 - Ocean Motion, Gravity, & Earth motion

Materials

  • Notes, diagrams,

Challenge

Diagram one of the spinning water demonstrations and explain what happens.













Add to the outline what you understand about each kind of ocean current motions.

1. The rise and fall of the tides ...









2. Wind ...









3. Temperature (Thermohaline circulation) ...









4. Earth's rotation ...





Lab notes 7 - Class ocean mural

Materials

  • Research materials.

Challenge

Select two organisms. One a producer and a consumer. Research them, illustrate them and write a one page report about their characteristics, including how they are adapted to the regions where they live in the ocean.



Lab notes 8 - Ocean depth activity

Materials

  • Cotton twine, with permanent marker lines every centimeter, lead weight, Graph Paper

Focus questions:

  • How is ocean depth measured in old times?



Challenge

Herodotus (-440 BCE): Recorded in his Histories (Book 2, 5), this description: "... approaching the Egyptian coast and using a sounding lead sailors brought up mud when the ship was still a day's sail from land.

Use a lead weight and cotton twine to measure the depth of the ocean floor in the ocean box.

Record the depth every two centimeters.

o cm

5 cm

10 cm

15 cm

20 cm

25 cm

30 cm

35 cm

40 cm

45 cm

50 cm






Lab notes 9 - Ocean impacts on humans & Human impact on Oceans

Materials

Challenge





Support materials

Ocean life



Tardigrade

Tardigrades can survive crushing pressure of the ocean floor, DNA shredding radiation, the vacuum of space and even temperatures just 1 degree above absolute zero, and the evaporation of all the water in their cells. Don't believe it? Check them out.

Research ... American Scientist article - Tardigrades

Earth's rotation & Gulf Stream

Earth's rotation & Gulf Stream

Source - Science. Shifting Currents. Paul Voosen. June 11, 2026

Atlantic Meridional Overturning Circulation (AMOC)

AMOC

Source - Science. Shifting Currents. Paul Voosen. June 11, 2026

Ocean Currents



Ocaean currents

Source Wikimedia.org



Ocean zones

Ocean zones

Source

World map

World map with oceans

Lead and line

Lead and line
Sailors using lead and line
Olaus Magnus, Public domain, via Wikimedia Commons

Graph paper

Graph paper

Oceanography Review

Name:

Circle the best answer for each question.

1. Which of the following is NOT one of Earth's five major oceans?
A)Atlantic Ocean
B) Pacific Ocean
C) Mediterranean Ocean
D) Southern Ocean

2. How does the density of water drive ocean currents?
A) Cold water is denser and rises to the surface.
B) Warm water is less dense and sits lower in the ocean.
C) Cold water is denser and sinks, while warm water is less dense and rises.
D) Water density does not affect ocean currents.

3. What role does phytoplankton play in marine ecosystems?
A) They are apex predators that regulate fish populations.
B) They are microscopic organisms that form the base of the ocean food web.
C) They are deep-sea plants that use chemosynthesis to get energy.
D) They are primary consumers that eat zooplankton.

4. How do scientists define isotherms?
A) Lines connecting places of equal water temperature on a map.
B) Lines showing the exact depth of the ocean floor.
C) Zones where tectonic plates meet.
D) Measurement tools used by ancient sailors.

5. What role does phytoplankton play in marine ecosystems?
A) They are apex predators that regulate fish populations.
B) They are microscopic organisms that supply the energy of the ocean food web.
C) They are deep-sea plants that use chemosynthesis to get energy.
D) They are primary consumers that eat zooplankton.

Short Answer & Diagram Analysis

6. Earth's Rotation and Currents (Northern Hemisphere):
Imagine you are floating on an ocean isotherm. The cold water is to your left, and the warm water is to your right.
A) In which direction will the current push you (front, back, left, or right)?
B) Explain how the Earth's rotation (Coriolis effect) causes this movement.







7. Isotherm Spacing and Speed:
Explain what is happening to the speed of an ocean current when isotherms are tightly packed together. Why does this occur?







8. Ocean Exploration History:
Before modern sonar, describe one way ancient mariners and scientists measure the depth of the oceans and seas?







9. Analyzing Isotherms:
Imagine a fictional ocean temperature map. In Zone A, isotherms are spaced 50 miles apart. In Zone B, isotherms are spaced 5 miles apart.
A) Which zone features a steeper density slope?
B) Which zone has a faster ocean current?







10. Marine Adaptations: Choose one marine organism that you didn't report on and.

Describe two specific anatomical or physiological adaptations it has that allow it to survive in its environment.









11. Ecosystems and Food Webs:
Draw a simple energy flow pathway (food chain) using at least three of the following:
Apex predator, Phytoplankton, Small fish, Zooplankton.









12. Human Activity and Natural Hazards:

Coastal communities are increasingly threatened by natural hazards like tsunamis and shoreline erosion. Describe one engineering solution humans can build to protect these shorelines.





Answer key

Multiple Choice

1. C (Mediterranean Ocean)
2. C (Cold water is denser and sinks, while warm water is less dense and rises.)
3. B (They are microscopic organisms that form the base of the ocean food web.)
4. A (Lines connecting places of equal water temperature on a map.)
5. B (microscopic organisms that supply the energy, (form the base) of the ocean food web.

Short Answer & Diagram Analysis

6. Earth's Rotation and Currents:
A) The current will push from back to front.
B) Warm water is less dense and slopes upward. Water naturally tries to flow down toward the cold/dense water, but the Coriolis effect deflects this moving water to the right in the Northern Hemisphere, creating a stable current that flows parallel to the isotherms.

7. Isotherm Spacing and Speed: Closely spaced isotherms mean a drastic temperature change over a short distance. This creates a steep density slope and high pressure difference, causing the ocean current to flow much faster.

8. Ocean Exploration History: Ancients measured depth using the sounding weight or lead line. They dropped a heavy piece of lead attached to a long, marked rope (often made of hemp) into the water until it hit the sea floor, then measured the length of the wet rope.

9. Analyzing Isotherms:
A) Zone B has a steeper density slope (temperature changes drastically over a shorter distance).
B) Zone B has the faster ocean current.

10. Marine Adaptations: Answers will vary. (e.g., Deep-sea anglerfish have bioluminescent lures to attract prey in the dark and large mouths to eat whatever comes by; marine mammals have blubber for insulation in cold water and blowholes for breathing air at the surface).

11. Ecosystems and Food Webs: Energy flow should progress logically. Example: Phytoplankton, ⇒ Zooplankton ⇒ Small fish ⇒ Apex predator.

12. Human Activity and Natural Hazards: Answers will vary. (e.g., Seawalls, breakwaters, artificially replenishing beaches, or restoring mangrove forests/wetlands to absorb wave energy.



Home: Pedagogy - theory, curriculum, learning, human development, & teaching

Home: Science - knowledge base, activities, pedagogical knowledge in all dimensions



Top
